Design: Control panel with APR

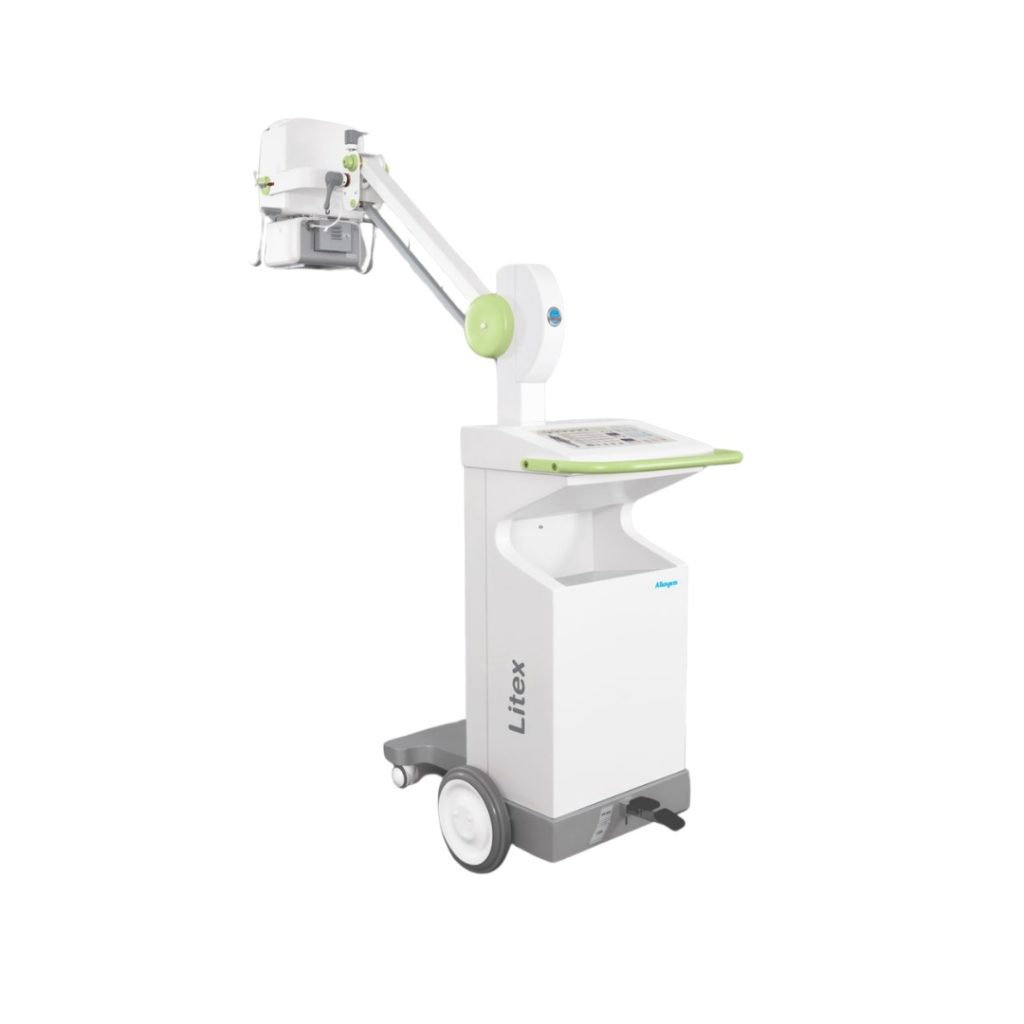

Stand: Spring Balanced Mobile Stand (SBM). This stand comprises of the below:
1. Sturdy carriage (main body) with control panel embedded inside.
2. Open compartment for placing film cassettes/ files etc.
3. Handle for comfortably manoeuvring the machine on three wheels.
4. Machine lock/ unlock paddle.
5. Rotatable (±90°) tube head with collimator and LBD mounted on a spring balanced tube arm having up/down positions with suitable safety locks/ inter locks.

MAJOR TECHNICAL SPECIFICATIONS:

1. Power Output : 110 KW
2. Frequency: 110 KHz
3. Max. mA : 110 mA
4. KV Range : 40-120 KV
5. X-Ray Tube Head: Monoblock
6. X-Ray Tube: Stationary Anode
7. Control Panel: With APR
8. Collimator: Manually operated Light Beam Diaphragm (LBD)

9. Power Supply Requirement : 230 V AC, single phase supply of 50/60 Hz frequency with line regulation of +- 10%.
10. Max 5.25 KVA
